Description
1/2″ PEX adapters are included by default. For other size adapters (free upgrade – 3/8″ PEX, 5/8″ PEX or 1/2″ PEX-AL-PEX) make a note at checkout.

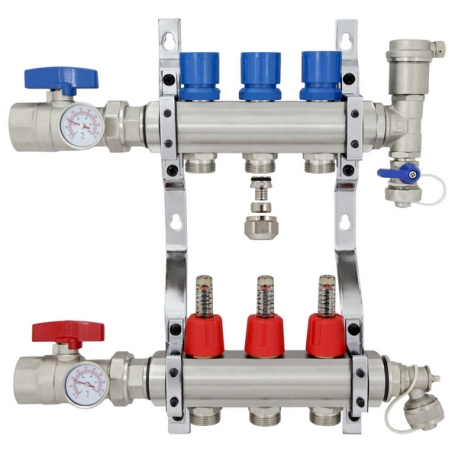

3-branch Deluxe Radiant Manifold Set. All-brass construction with nickel plated finish. Pre-assembled.
The following list of components comes with every set:
(1) Supply side radiant manifold w/ (3) adjustable flow indicators and (3) outlets for PEX tubing.
(1) Return side radiant manifold w/ (3) balancing valves and (3) outlets for PEX tubing.
(2) 1″ threaded, quarter turn shut-off ball valves – one for each manifold (blue handle for return manifold and red handle for supply).
(2) Temperature gauges on both manifolds to monitor supply and return water temperatures (F & C reading).
(1) Float-type air vent to eliminate air from the system (air vent caps included for pressure testing purposes).
(2) Drain/fill valves with 3/4″ garden hose (drain hose) connection and a cap.
(6) Compression adapters for 1/2″ PEX tubing (no PEX tools required to connect tubing to the manifold).
(2) Mounting brackets.
Other suggested components:
For pressure testing purposes, use a Pressure Test Kit (SKU TESTKIT).
