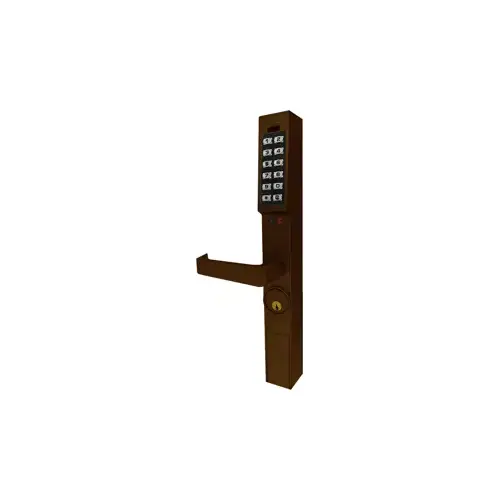

DL1300 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Lever Trim, for Adams Rite 4500, 4700, & 4900 Series Deadlatch, in US10B Duronodic
DL1300 Series – Aluminum door retrofit outside trim. Works with Adams Rite® 4710, 4730, 4900 series deadlatch. 2,000 user codes, Master, Manager, basic user and multiple one time user codes. 500 event schedule, real time clock and 40,000 event audit trail.
SPECIFICATIONS
- Door thickness: Supports stile 1-3/4″ only
- Backset: Supports 31/32″, 1-1/8″ and 1-1/2″
- Latch: Works with Adams Rite® 4710, 4730, 4900 series deadlatch
- Handing: Non-handed
- Power: Uses 2 DL123A Lithium batteries
- Keypad: All metal, vandal resistant 12 button keypad supports 3-5 digit PIN codes
- Cylinder: Supplied with 6 pin standard mortise cylinder SC1 Keyway. Use 1-3/8″ or 1-1/2″ cylinders
- Cams: Cam supplied works with generic Alarm Lock cylinder. Other Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent and Schlage. IC type cams for Best, Corbin-Russwin, Medeco, Schlage and Yale are also available
This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
