Description

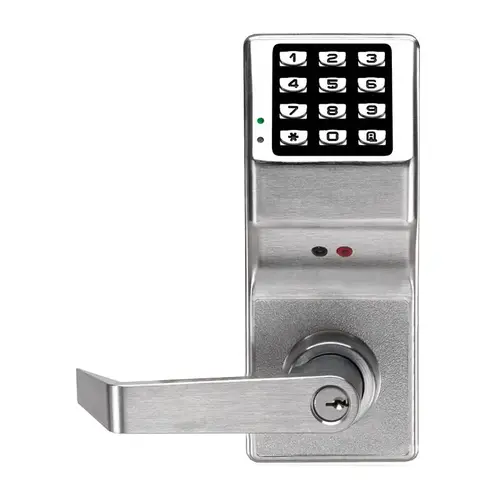

2800 SeriesTrilogy T2 Economy Cylindrical Audit Trail Digital Lock
Electronic battery operated digital lock. Holds up to 200 codes, Master, Management, Supervisor & basic user. 150 event schedule, real time clock & 1,000 event audit trail.
Features:
- 1000 event audit trail log, time-stamped by day, date, time and use
- 150 scheduled automatic lock/unlock events, etc.
- 200 user codes: Master, manager, supervisor and basic users. Also one-time service code (3-6 digits)
- Weatherproof -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
- 5 AA Battery operated; 80,000 cycles, typical
Specifications: Door Thickness:
- Fits 1 5/8″ to 1 7/8″
Backset:
- 2 3/4″ (2 3/8″ also available)
Strike:
- 1 1/8″ x 2 3/4″ T strike & 1 1/4″ x 4 7/8″ ASA strike included
Latch bolt:
- UL Listed, fire rated 3 hours, 1/2″ throw, reversible
Handing:
- Non-handed
Power:
- 5 AA alkaline batteries (included)
Keypad:
- All metal, 12 button. All functions programmed through keypad
Door Prep:
- Standard ANSI A115 Series prep, modified by adding additional through-bolt boles
Compliances:
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers.
Cylinder:
- 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can be used with the HW620 tailpiece (supplied)
Interchangeable Core Models:
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schalge
Finishes:
- 10B – Oil Rubbed Dark Bronze
- 26D – Satin Chrome
- 5 – Satin Brass
- 3 – Bright Polished Brass
