Description

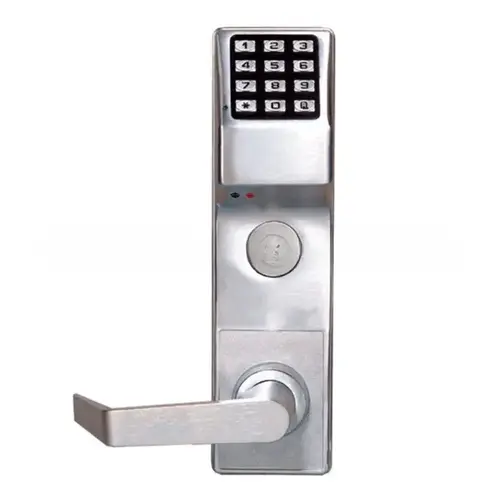

Trilogy cylindrical and mortise locks with privacy/lock down pushbutton on inner door (mortise & cylindrical pin or pin/prox models) provide advanced keyless entry DL4500 Similar to the DL3200 electronic door lock features plus 2000 PIN or PIN/Prox user codes 500 scheduled events 40000 audit trail Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option) Occupied and multi-status LED indicator flashes when privacy session is active Self-stick instructional signage supplied (bilingual) Keypad or PC programming/reporting Right- or left-hand classroom or deadbolt function models 1-3/8 In. mortise cylinder & ASA strike matching function supplied. 5AA battery-pak operated 60000 cycles Weatherproof -31 Deg. to +151 Deg.br / br / – Door Thickness Fits 1 3/8ï¾” to 1 7/8ï¾” (4.46cm).br / – Backset 2 3/4ï¾” standardbr / – Strike 1 1/4ï¾” x 4 7/8ï¾”strike includedbr / – Handing Specify RH or LH when ordering lock is reversible In the fieldbr / – Power 5 AA alkaline batteries (included)br / – Keypad All metal 12 button. All functions programmed through keypad.br / – Door prep Standard ANSI A115 Mortise prep modified by adding additional through-bolt holesbr / – Compliances Steelcase lockbody meets BHMA specifications For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA compliant leversbr / – Cylinder 1 3/8ï¾” (3.5cm) mortise cylinder supplied. Will Accept 1 3/8ï¾” to 1 1/2ï¾” (3.5 ï¾– 3.82cm) mortisebr / – Cylinder. Deadbolt function supplied with cloverleaf Cambr / – Cams Cams for other manufacturerï¾’s cylinders are available
This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
