Description

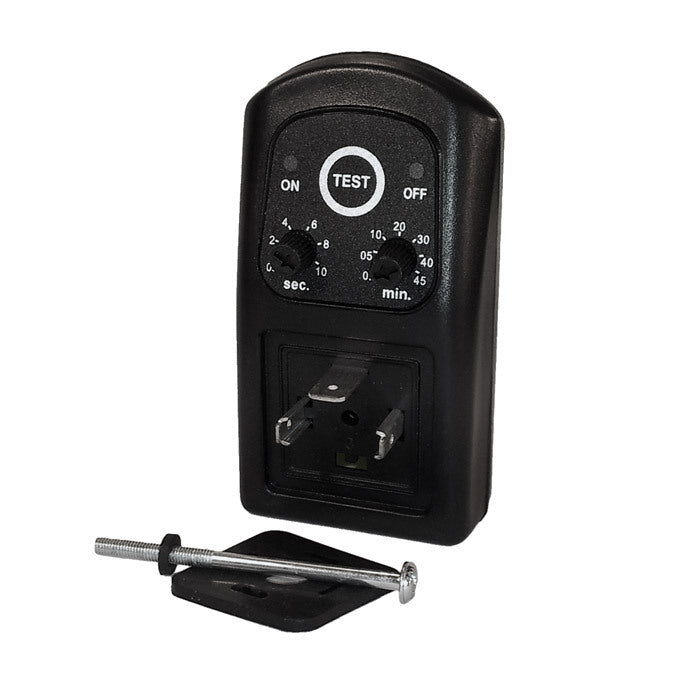

Analog timer for solenoid valves (24-230V AC/DC). The ON time is adjustable from 0-10 seconds and the OFF time from 0-45 minutes. The timer is compatible with the DIN-A connector and can be connected to all JP Fluid Control solenoid valves of the ST, DF, HP, TP and TW series. The table below shows the full specifications of the analog timer.
| Parameter | Value |
| Voltage | 24-230V AC/DC 50Hz/60Hz |
| Current (continuous) | 1A |
| Current (peak) | 10A during 10 ms |
| Standby power consumption | 4mA max |
| Operating temperature | -10°C+50°C |
| Lifetime cycles | 3*108 x cycles |
| Time ON | from 0 up to 10s (potentiometer) |
| Time OFF | from 0 up to 45min (potentiometer) |
| Indicator | LED |
| Connector | DIN4365A |
| IP-rating | IP65-EN 60529 |
