Description

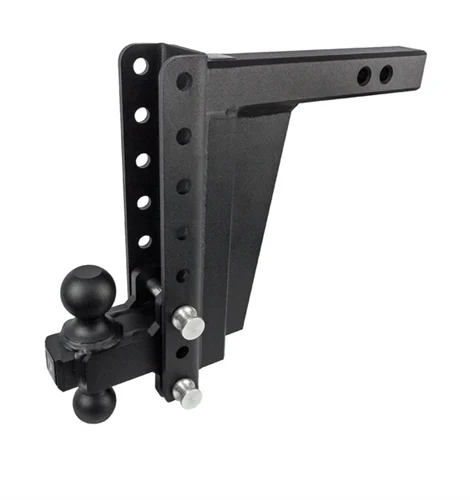

The Bulletproof Hitches ED2010 Extreme-Duty 2-Ball Mount allows you to tow up to 12K or 30K trailers with an adjustable 2” and 2-5/16” ball mount. Fits a 2″ receiver. 10” drop/rise. Adjustable hitch ball platform also allows you to tow trailers with different heights.
- 6-position adjustable hitch ball height allows you to tow trailers of various heights.
- Made for vehicles with 25”-27” clearance off the ground to the bottom of your receiver tube.
- Hitch ball may be adjusted up or down and secured in place with pins and clips (included).
- Shank fits a 2” receiver on your tow vehicle.
- Hitch balls are welded onto the ball platform.
- Switching the adjustable balls is easy, simply pull out the pins, flip the ball platform, and place the pins back in.
- Hitch pin and clip, or hitch lock for securing to your receiver are sold separately.
- Provides an attachment point for your trailer coupler.
- Durable steel construction with a powder-coated, corrosion-resistant finish.
- Durable 5/16” thick ball channel.
- Max Drop: 10”
- Max Rise: 10”
- Gross towing weight:
- When used with 2″ ball: 12,000 lbs
- When used with 2-5/16″ ball: 30,000 lbs
- Maximum tongue weight capacity: 6,000 lbs
- Distance from hitch pin hole to hitch ball (center to center):
- Pin hole closest to channel: 13-7/8″
- Pin hole furthest from channel: 15-3/8″
- Overall height: 15-3/4″
- Total length with ball platform installed: 20-1/4″
- Total length without ball platform installed: 15-3/4″
- Distance from center of hitch pin hole to gusset plate:
- Pin hole closest to gusset plate: 3-1/2″
- Pin hole furthest from gusset plate: 5″
- Weight: 62 lbs
- Pin hole diameter: 5/8″
- Adjustment hole diameter: 5/8″
- SAE J684 certified.
- Limited Lifetime Manufacturer Warranty.
- Made in the USA.
