Description

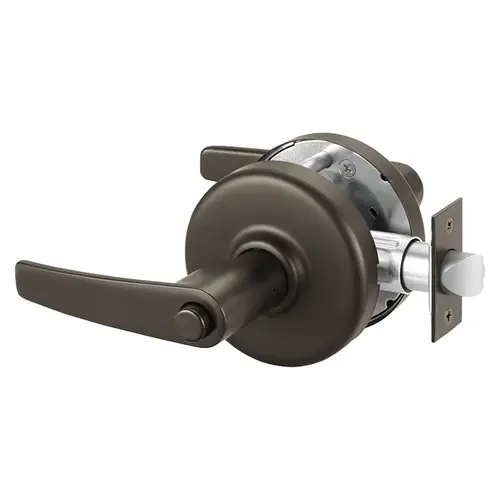

CORBIN RUSSWIN CL3820 PRIVACY LOCK OVERVIEW
- ANSI function F76A (Privacy Lock)
- Non-keyed cylindrical lever lock.
- Throw-off latchbolt by lever.
- Outside lever locked by push button (Lever handle is freewheeling in locked position).
- Outside lever is unlocked by an emergency release tool outside, by rotating inside lever or by closing door.
- Inside lever is always free.
Standard features
- Door thickness:1-3/8″ to 1-3/4″ doors
- Backset: 2-3/4″
- Strike: ANSI curved lip 4-7/8″ x 1-1/4″ x 1-1/4″ lip to center
- Cylinder: Not applicable
- Keys: Two nickel silver keys
Most common configuration:
- NZD Newport lever
- 626 Satin Chrome finish
3800 SERIES OVERVIEW
An economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It s the ideal lever lockset for standard commercial applications.
When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reducedwithout compromising functionality and durability.
Durability for years
500 employees x 2 times per day x 260 workdays per year = greater than 57 years of operation
Example for illustrative purposes only.
Typical applications include:
- Interior offices
- Closets
- Multi-family housing
- Restaurants
- Retail complexes
Key Advantages
- Lever Releaselever design for vandal resistance
- Solid cast levers
- ANSI/BHMA Grade 2certification
- UL-cUL 3-hour fire rating
- Independent lever return springs
- Thrubolts on door for solid attachment
- Covers ANSI/BHMA door prep A156.115
