Description

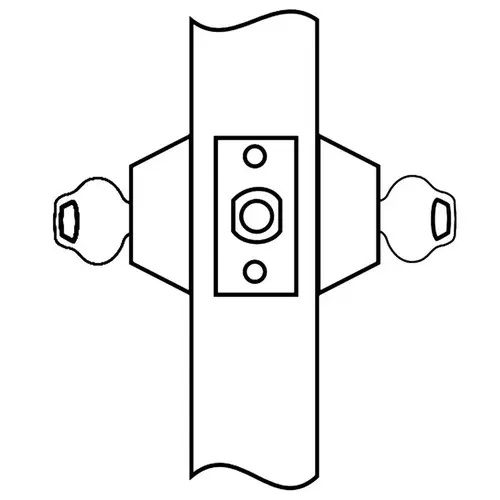

DL2200 SeriesDeadlocks
Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.
Specifications: Certification:
- UL10B/UL10C Fire Rated Auxiliary Lock for A label and lesser class doors when used with a correspondingly rated primary latching device.
- ANSI/BHMA A156.36 Certified Grade 2
Handing:
- Non-handed
Door Thickness:
- Standard: 1-3/4″ (44mm)
Backset:
- Standard: 2-3/4″ (70mm)
Front:
- Standard: brass or stainless steel, 2-1/4″ (57mm) x 1-1/8″ (29mm)
Deadbolt:
- 1″ throw, solid steel deadbolt with hardened, free spinning, steel pin insert
Strike:
- Standard; 2-3/4″ (70mm) x 1-1/8″ (29mm)
Cylinder:
- Standard: brass, 6-pin, L4 keyway, 0-bitted
Keys:
- Two nickel silver standard
Keying Features Available:
- Master keying
- Construction master keying
- Security
- Visual key control
- Concealed key control
Warranty:
- One-year limited
