Description

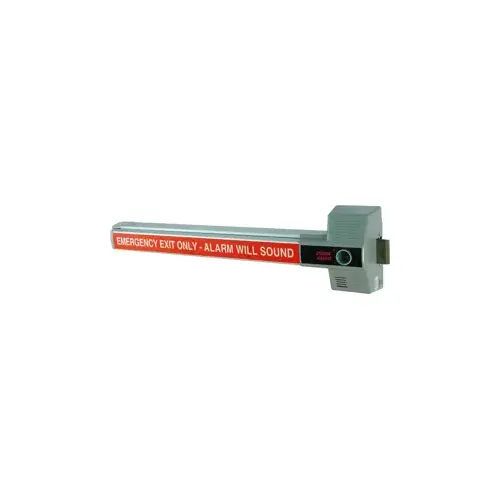

ECL-230X EXIT CONTROL LOCK
The ECL-230X is a code compliant, battery alarmed, rugged deadbolt, panic device photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits
Product Features
- Single point, 1″ throw dead bolt with just over 3/4″ engagement with the frame
- Saw resistant dead bolt
- Corrosion resistant alloy lock body
- 100 decibel alarm, powered by 9-volt battery (included)
- Surface/flush reversible strike
- Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
- Durable photo-luminescent sign absorbs light to then “glow in the dark” when lights are dimmed
- Locking and unlocking (deadbolt) always arms and disarms the alarm
- Non-handed
- Low profile meets International Building Code requirement allowing for 4″ maximum projection off face of door
- Resetting the alarm can only be accomplished with a control key
Technical Information
- Door Types – Wood, Hollow Metal
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″
- Standard Device fits 36″ – 48″ door
- Machine and Sheet Metal Screws (Std.)
Detex Limited Warranty
10 Year Limited Manufacturers Warranty
