Description

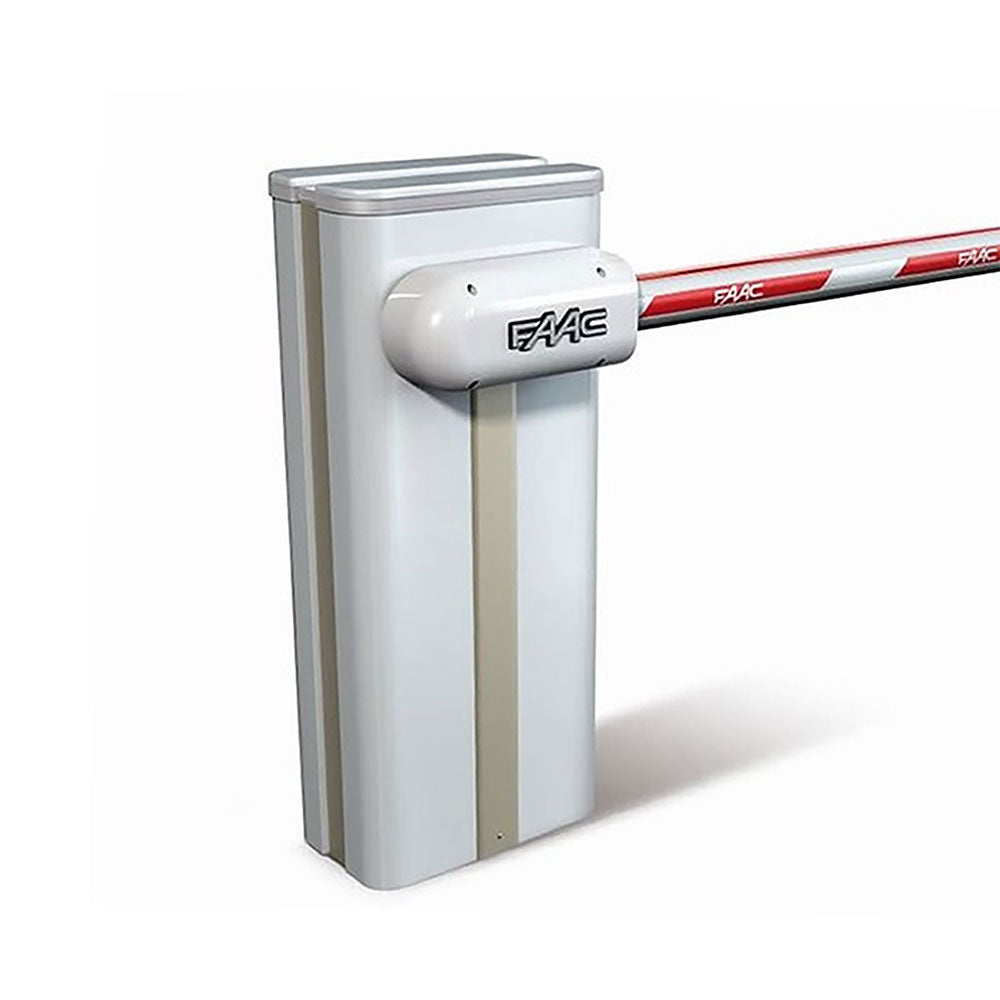

FAAC B680H Automatic Barrier Gate (S Kit)
The automated system consists of a white aluminum beam with reflectors, optional signaling lights, a covering compartment, and a steel upright profile. Inside the compartment, there is an operator consisting of the upright profile with a hydraulic unit and two plunging pistons fixed to it, which, by means of a rocker arm, rotate the beam. The latter remains balanced thanks to a balance spring fitted on one of the two plunging pistons. The electronic control equipment is also housed on the upright, inside a compartment, and the whole is protected by the external covering compartment.
The system features an adjustable electronic anti-crushing safety, a device that guarantees stopping and locking of the beam in any position, and a convenient manual release for use in case of blackout or inefficiency.
Includes
- Body B680H
- Cover
- S Bracket
- Balancing Spring
Notes
- For 6.5 – 26.2 ft. openings
- Make sure to order the barrier arm when ordering the kit (barrier arm not included)
- Kits with blue and red covers have a non-standard lead time
Manufacturer’s Warranty Period
- 3 years
