Description

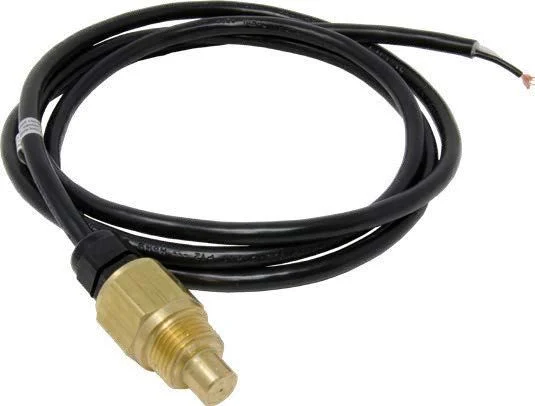

GP TS12230 High Limit TS Series Thermal Switch 1/2″ NPT 230º F with 68″ Wire Lead
Features• Simple installation• 68” 18 AWG Cable• Normally Closed• Can be mounted in any position• Factory calibrated• Made in the USA• Precision snap action internal switches
TS Series Snap Action Data Sheet
Specifications• Maximum Pressure: 5,000 PSI• Voltage: 5 AMPS at 120 VAC • Cord Length: 68”• Temperature: 230º F• Inlet: 1/2” NPT• Switch Dimensions: 2.5″ x 1″• Materials: Brass, Steel, Nylon, Epoxy• Weight: 0.5 Lb
