LiftMaster Medium-Duty Logic Trolley Operator

Description

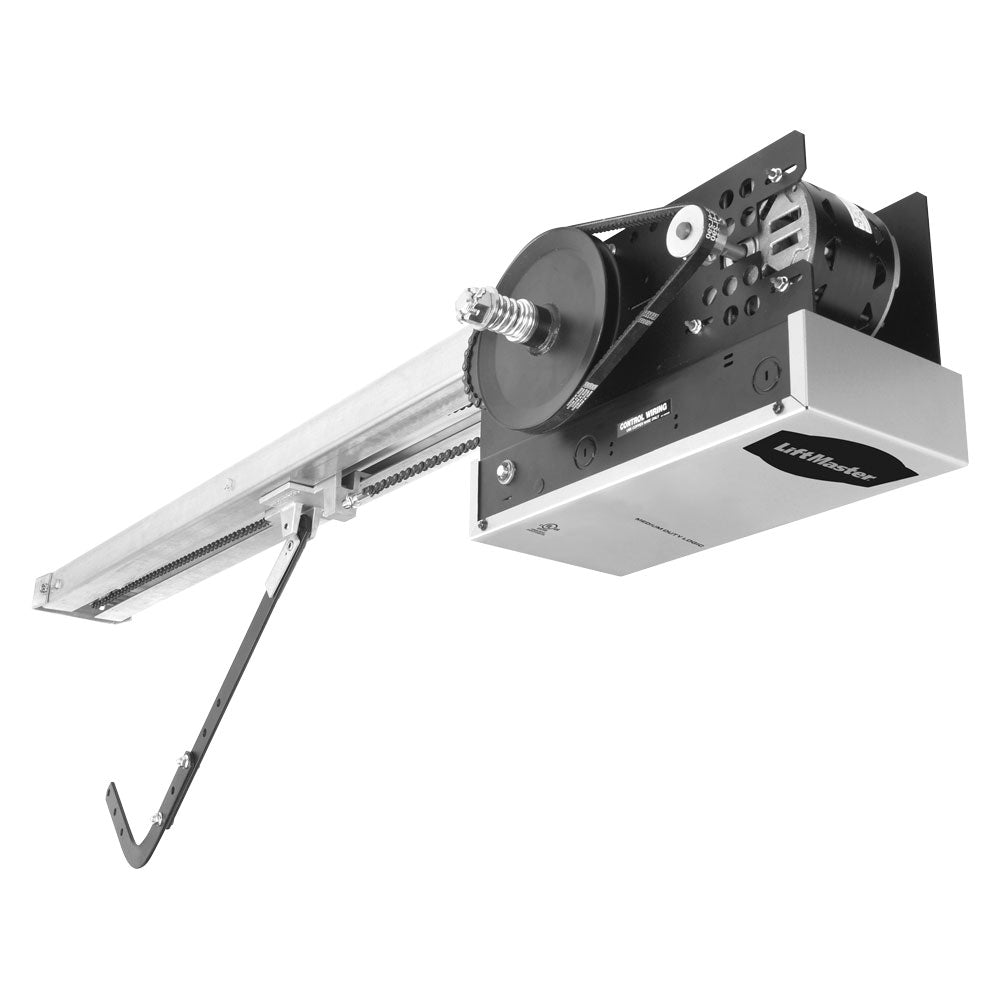

LiftMaster Medium-Duty Logic Trolley Operator

The LiftMaster MT is ideal for standard-lift sectional overhead doors with mid-range duty-cycle requirements up to 12 cycles/hour and up to 50 cycles/day (using intermittent-rated motor). This commercial door operator suspends from the ceiling and directly attaches and controls a sectional door. Trolley with disconnect disengages operator for manual lifting in an emergency.

Please note

The following options are mandatory to purchase a Commercial Door Operator, any order not containing these options will not be processed:

• Door Height
• Photo Eyes

If you need more information or a custom configuration, please call our technical support team at(800) 730-8382.

This product is a special order only and it is not eligible for returns or refunds.

Make sure to calculate the door area to ensure compatibility*

Includes

• 3-Button Station 02103

Features

• Operator Speed: 8-10 Inches per second
• Limit Settings: Mechanical
• Emergency Disconnect for Manual Operation: Floor-level emergency release sash chain.
• Emergency Disconnect with Auto-Reconnect: Reconnects when tension is removed from the emergency release rope.
• Programming: Tactile buttons
• Circuit Board: Solid-state medium-duty logic circuit board
• Timer-to-Close: Programmable from 5-60 seconds in 5-second increments
• Clutch: Standard adjustable friction clutch
• Motor Operator Wall Control: 3-Button control station
• Trolley Track: Dual L-rail trolley track
• Push Button Station: 3-Push button station (Open/Close/Stop)

Installation Features

• Maximum Door Height: 14 feet
• Maximum Door Width: 22 feet
• Maximum Allowable Square Footage: 310 square feet
