Description

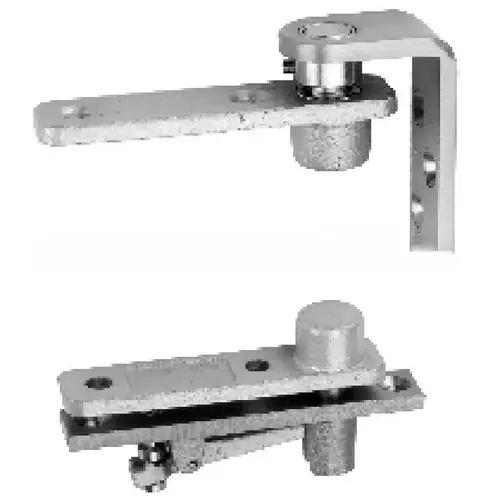

McKinney EP-5J Jamb Mount Pivot Set
The EP-5J steel jamb mount center hung pivot set is used in conjunction with CSS-9 Combination Strike and Stops and DS-6 Emergency Door Stops and is used for full size doors where mounting a bottom pivot on the floor is not possible or desirable. It’s recommended for installations on average frequency doors in public buildings.
- Used in conjunction with the McKinney CSS-9 and DS-6
- Thrust steel ball bearing in bottom pivot, oil impregnated bronze bearing in top pivot
- Center hung
- Mortised into side jamb
- For use on double acting doors
- Full mortise top pivot
- 1-5/32″ radius heel edge of door
- Maximum Door Weight = 135 lbs.
- Packed with 14 x 1-1/2″ wood screws and 1/4-20 x 5/8″ machine screws
