Description

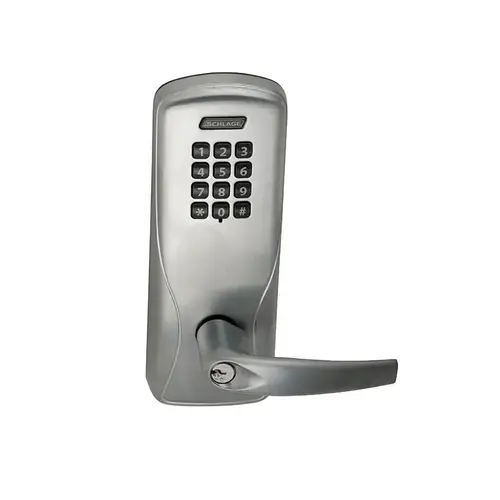

CO-100Standalone electronic lock
The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. Within this group is CO-100, a standalone lock that is manually programmable. User rights are stored on the lock with unique PIN codes assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
The CO-100 from Schlage is versatile enough to use anywhere. In the classroom/ storeroom function, it is fully outdoor rated and can be used for gate or breezeway access. CO-100 privacy function locks can be programmed to show occupancy indication for applications such as dressing areas or bathrooms. And office function locks can be set up for remote release making them perfect for vestibules or waiting rooms.
Cylindrical, mortise, and exit trim chassis options are available. The series is compatible with many popular brands of exit devices and offered in a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types.
CO Series has been tested to the highest standards in the industry to ensure the quality and reliability you have come to expect from Schlage. The CO Series is ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed.
Features and benefits:
- Manually programmable
- Up to 500 unique 3-6 digit PIN codes stored on the lock
- ANSI/BHMA A156.25 (full outdoor1), ANSI/ BHMA Grade 1 certified, UL 294 and UL 10C listed, hurricane wind and impact rated(2)
- Classroom/storeroom, office and privacy functions available
- Chassis options include cylindrical, mortise, and exit trim
- Compatible with most major brands of key systems and exit devices
- Hard wired, remote release push button capability(3)
- Programmable option for lighted occupancy indication(4)
- Three levels of user authority
- Normal, toggle, pass through, and freeze credential attributes available
- LED indicator visually communicates lock status
- Fully outdoor rated in 70 function for use on pool gates and breezeways
- (1) Applies to 70 function only
- (2) Applies to cylindrical and mortise chassis only
- (3) Available on office function locks manufactured after 1/1/2018 with firmware version 2.6.2 or higher
- (4) Available on privacy function locks manufactured after 9/30/2018 with firmware version 2.7.0 or higher
Functions:
- Classroom/storeroom
- Office
- Privacy
Standard status signals:
- Battery status–indicated by flashing LED lights
- Access granted/access denied
- Programming commands
- Occupied–indicated by red LED light (privacy function only)
Specifications: Users:
- 500
Credential verification time (keypad only):
- ≤ 1 second
Visual/audible communications:
- Tri-colored LED’s and audible indicators
Power supply:
- 4 AA batteries (standard off the shelf: included)
Battery life:
- Battery life
Operating temperature – exterior:
- -31° to 151°F (-35° to 66°C)
Operating temperature – interior:
- -31° to 151°F (-35° to 66°C)
Operating humidity:
- 0 – 100% non-condensing
Certifications:
- ANSI/BHMA A156.25 (full outdoor(1)), ANSI/BHMA Grade 1, UL 294, UL 10C, UL Canada, FCC Part 15, FL12400(2), FL1591(2), FL13013(2) and FL14482(2)
- ADA and RoHS
Programming and use options: PIN(3):
- User level – Basic
- Unlocks the lock momentarily when in a normally
secured state
Programming:
- User level – Manager/administrator
- Initiates all programming actions (can be changed by administrator)
User changes:
- User level – Manager/administrator
- Assigns or deletes user PINs for the lock
Toggle:
- User level – Manager/administrator
- Changes the lock to an unlocked state and back when desired
Freeze:
- User level – Administrator
- Maintains the lock in current state until code is re-entered (cannot be toggled)
Pass through:
- User level – Administrator
- Unlocks the lock momentarily regardless of current state
Other:
- User level – Administrator
- Includes change relock delay period; change PIN length; disable/enable beeper; disable/enable remote release(4); disable/enable LED occupancy indication(5)
- (1) Applies to 70 function only
- (2) Applies to cylindrical and mortise chassis only
- (3) Credentials can be 3-6 digits in length
- (4) Remote release feature available on office function only
- (5) Occupancy indication feature available on privacy function only
